Summary

Design a mold and fabricating the mold using a laser cutter. After which a bio material is made and poured into the mold fabricated.

What You'll Need

  1. Acrylic sheet
  2. Ingredients to make Biomaterials

Recipe/ materials for Agar

  • 7 g of agar powder
  • 4 g of glycerin
  • 240 ml water
  • turmeric for colour
  • induction cooker
  • pot/ silicon spatula





Lesson Materials

The Instructions

Design of mold

Designing image for mold

  1. This involves designing in inkscape and ensuring that the images are vectorised
  2. Exporting this design to lightBurn software



Export and Fabricate

The design in imported into the software and fabricated.

  1. Ensure that the correct setting are in place ie : 100% and 5mm/s
  2. Save the image as a gcode file



Load the acrylic into the loading bed

Ensure setting are ideal and load the acrylic.

Ensure that the laser in about 3mm above the material

Follow the laser cutter operating instructions

Collect completed mold

Collect the mold that is completed

Secure mold

Glue the two pieces of acrylic that are cut using acylic glue

Ensure that the mold has a backing in place secured firmly so as to ensure that the biomaterial could easily be poured in.

Cooking of biomaterials

Follow the recipe given to cook the agar.

1. Weigh out 7 g of agar powder using the electronic mass scale

2. Weigh out 4g of glycerin using the electronic mass scale

3. Measure 240 ml of water using a measuring jug

4. Add 1-2 teaspoons of turmeric into the water

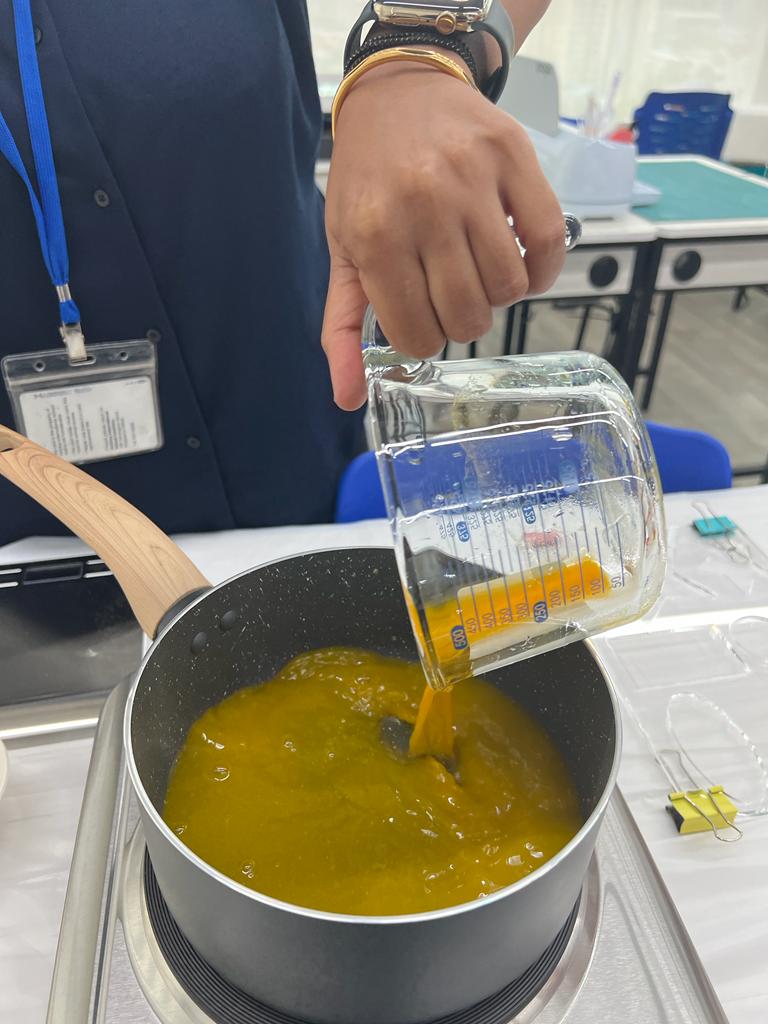

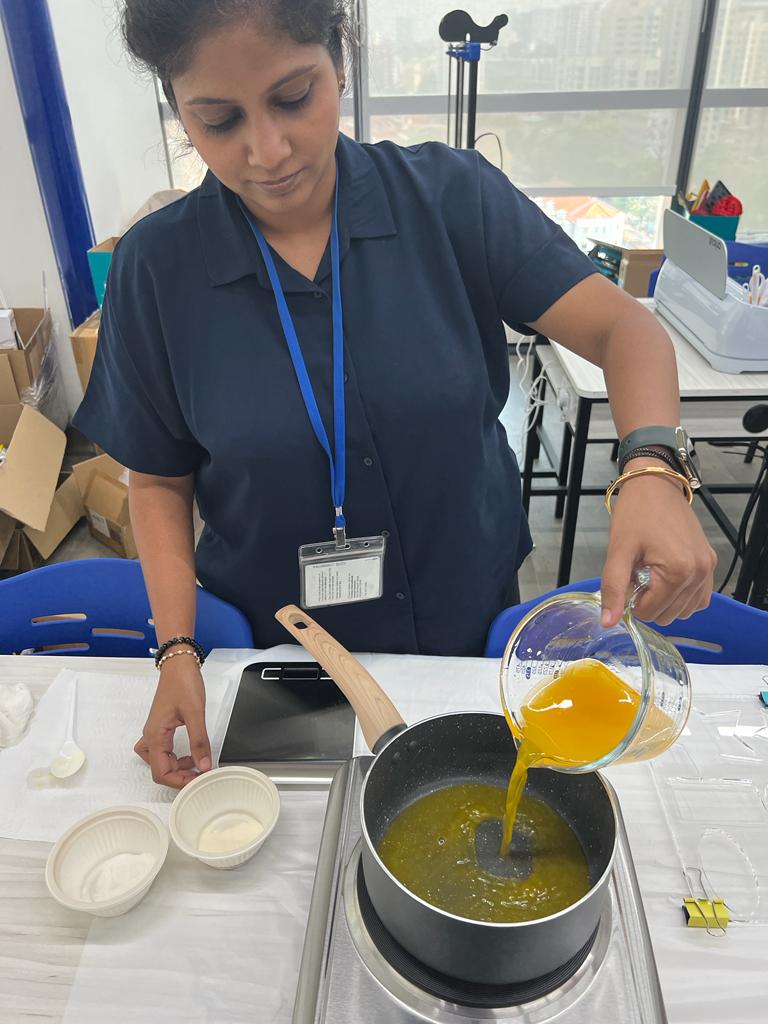

5. Pour the contents of the measuring jug into the pot

6. Add the agar powder and stir continously under low hear for 5- 7minutes

7. Add the glycerin and stir under low heat, till you see the contents in the pot start to gellify.

8. Leave aside to cool for a few minutes and pour into the mold

9. Let the biomaterial solidify in the mold and the biomaterial is ready to be used.

End product

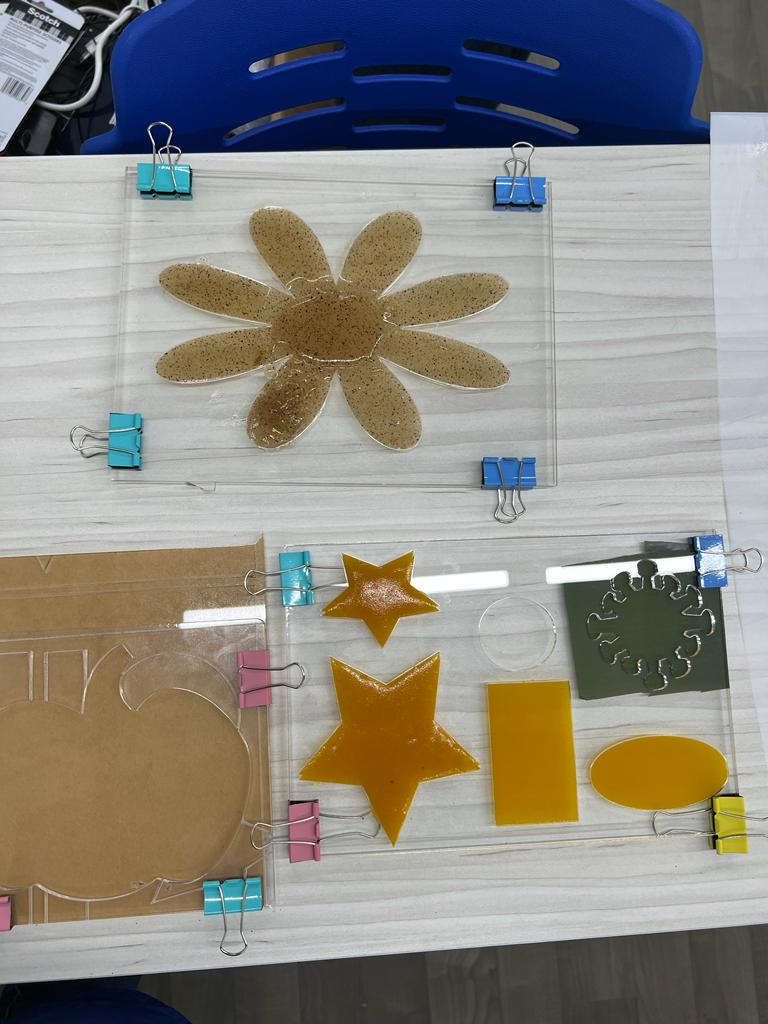

Peel the material off the mold when dry.
